OPTO-EDU A32.6401 Mini Usb 2.0 0.7x-4.5x Hdmi Digital Mobile Microscope
A32.6401 is widely used in PCB boards, hardware, serial devices, FPC, textiles, tickets, kinds of visual industrial testing, digital magnifying glass, hospital research, education, criminal investigation and other fields. It will reduce labor intensity and improve work efficiency.
The operation of the stereo microscope is simple, and the stereo microscope is also the most widely used. The main uses are as follows:
1. Research on zoology, botany, entomology, histology, mineralogy, archaeology, geology and dermatology.
2. In the textile industry, it is used for the inspection of raw materials and cotton and wool fabrics.
3. In the electronics industry, as an operating tool for transistor spot welding and inspection.
4. Inspection of surface phenomena such as crack composition of various materials, pore shape and corrosion.
5. When manufacturing small precision parts, it is used for the device of machine tool, observation of working process, inspection of precision parts and assembly tools.
6. The surface quality of lenses, prisms or other transparent materials, and the quality inspection of precision scales.
7. Judgment of authenticity and falsehood of composition notes.
8. Widely used in textile products, chemical chemistry, plastic products, electronics manufacturing, machinery manufacturing, pharmaceutical manufacturing, food processing, printing industry, colleges and universities, archaeological research and many other fields.
| A32.6401, A36.6401 Series Digital Microscope | A32.6401
-12M | A36.6401
-12M | A36.6401
-12MH |
| LCD Screen | Size | 10.6" IPS LCD | | ● | ● |
| Resolution | 1366*768 | | ● | ● |
| Digital Camera | Camera Pixel | 12MP | ● | ● | ● |
| Video Resolution | 1080p/60fps | ● | ● | ● |
| Data Output | HDMI | ● | | ● |
| WDR | Yes | ● | ● | ● |

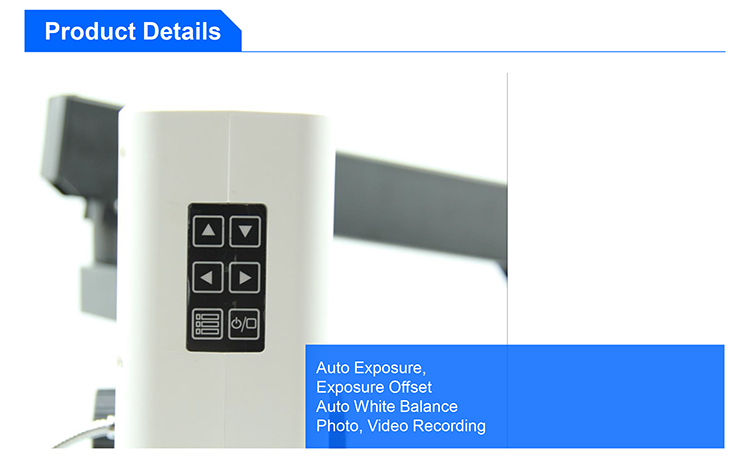

| Function | Auto Exposure,
Exposure Offset
Auto White Balance
Photo, Video Recording | ● | ● | ● |
| Storage | SD Card Storage (Max 32G) | ● | ● | ● |
| External Interface | Projector/Monitor With HDMI Port | ● | | ● |
| Optical | Objective | 0.7x~4.5x Zoom Lens | ● | ● | ● |
| Total Magnification | 14x~90x On 10.6" LCD Screen | ● | ● | ● |
| Illumination | Side/Up LED Light, Brightness Adjustable | ● | ● | ● |
| Focus Range | 60mm | ● | ● | ● |
| Working Distance | 88mm | ● | ● | ● |
| Stand | Column | Round Pole, Dia.25mm | ● | ● | ● |
| Stand | 380mm*250mm*20mm, Black | ● | ● | ● |
| 320mm*260mm*20mm, White (Same Cost) | o | o | o |
| Optional | A52.6401-0.5 | Auxilliary Lens 0.5x | o | o | o |
| A52.6401-2.0 | Auxilliary Lens 2.0x | o | o | o |
| Boot Logo | o | o | o |
| WiFi SD Card, Upgrade To WiFi Microscope | o | o | o |
| SD Card | o | o | o |
| Power | DC 12V1A, Wide Range 100~240V AC Adapter | ● | ● | ● |
| Remark: "●" Means Standard Outfit, "o" Means Optional |
