Place of Origin : China
Brand Name : CNOEC, OPTO-EDU
Certification : CE
Model Number : A11.1117
MOQ : 1 pc
Price : Negotiation
Packaging Details : Carton Packing, For Export Transportation
Delivery Time : 5~20 Days
Payment Terms : T/T, West Union, Paypal
Supply Ability : 5000 pcs/ Month
Applications : Laboratory
Drawtube : Binocular|Trinocular
max magnification : 1000X
product name : Microscope
Theory : Biological Microscope
Specifications:
| A11.1117 Biological Microscope | -A | -B | |
| Head | Compensation Free Binocular,30°inclined,55mm-75mm | ● | - |
| Compensation FreeTrinocular,30°inclined,55mm-75mm | - | ● | |
| Eyepiece | WF10X/18mm | ● | ● |
| Objective | Achromatic 4X | ● | ● |
| Achromatic 10X | ● | ● | |
| Achromatic 40X, Spring | ● | ● | |
| Achromatic 100X, Spring,Oil | ● | ● | |
| Nosepiece | Quadruple Revolving Nosepiece | ● | ● |
| Stage | Double Layer Mechanical Stage,Size150mmx150mm,Moving Range:80mmx50mm | ● | ● |
| Focusing | Coaxial Coarse and Fine Focusing Scale Value 0.002mm, Focusing Range :30mm | ● | ● |
| Condenser | ABBE N.A.1.25Condenser with Iris Diaphragm & Filter | ● | ● |
| Illumination | Kohler Illumination | ● | ● |
| Light Source | Halogen Bulb 6V/20W,AC 220V/110V,Brightness Adjustable | ● | ● |
| Optional Accessories | ||||||
| Eyepiece | WF16X | |||||
| WF20X | ||||||
| P16X | ||||||
| Objective | Achromatic 20X | |||||
| Achromatic 60X, Spring | ||||||
| Semi-plan Objective 4X | ||||||
| Semi-plan Objective 10X | ||||||
| Semi-plan Objective 20X | ||||||
| Semi-plan Objective 40X(S) | ||||||
| Semi-plan Objective 60X(S) | ||||||
| Semi-plan Objective 100X(S) | ||||||
| Plan Objective 4X | ||||||
| Plan Objective 10X | ||||||
| Plan Objective 20X | ||||||
| Plan Objective 40X(S) | ||||||
| Plan Objective 60X(S) | ||||||
| Plan Objective 100X(S) | ||||||
| Dark Field | Darkfield | |||||
| Photo Adapter | Photo Adapter | |||||
| CCD Adapter | 0.5x | |||||
| 0.57x | ||||||
| 0.75x | ||||||







|
|

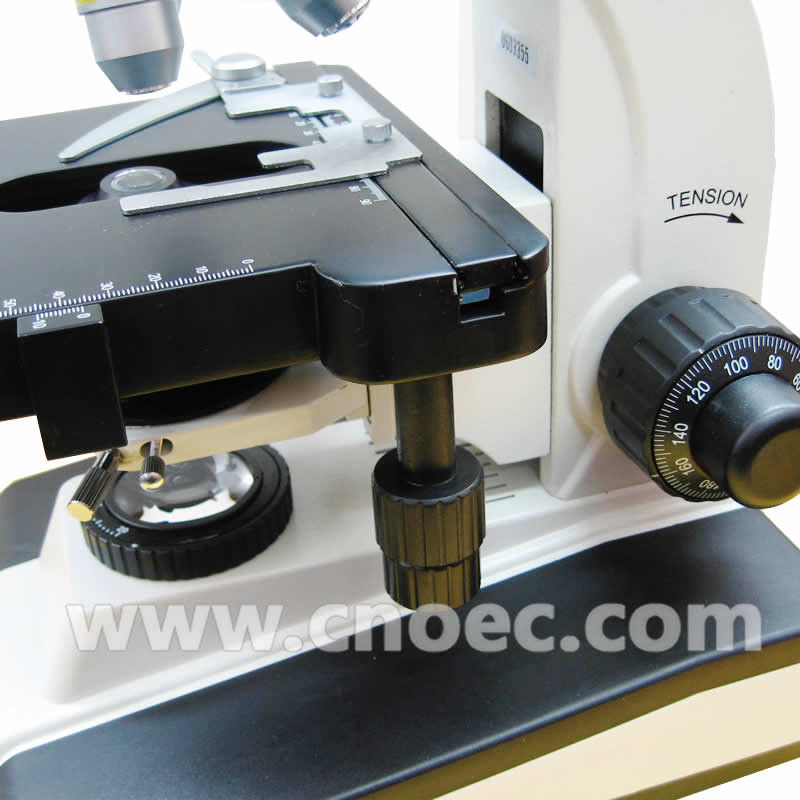

1000X Laboratory Biological Microscope Dark Field Microscopes A11.1117 Images |
